Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: JNDO
  • Model Number: PA Mini Electric Hoist
  • Usage: warehouse lifting cargo
  • Power Source: Electric
  • Sling Type: Wire Rope
  • Maximum Lifting Weight: 200kg
  • Maximum Lifting Height: 12M
  • Lift Speed: 10m/min
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Overseas service center available
  • Product name: wireless remote control mini electric hoist 100kg
  • Application: Lifting Goods
  • Optional: wireless remote control
  • Voltage: 220v/230v
  • Color: Optional
  • Power supply: Single Phase
  • Lifting height: 12m
  • Type: Movable / Fixed
  • Wireless remote: Optional
  • Protection class: IP54

Packaging & Delivery

Packaging Details 2pcs in 1 carton, delivered on pallets.
Delivery Time 15 days after receive deposit
Product Description

wireless remote control mini electric hoist 100kg

The PA series mini electric hoist works under a voltage of 220V.

It is mainly used to lift heavy goods under household power supply. A limiting device is provided to ensure the electricity is cut automatically when the hook has met its limit in height.

It ensures a high level of safety.

This product has been CE certified.

Main Features

1) Approved by CE

2) Powerful pure copper motor, with good electrical conductivity

3) The protection class is IP54

4) With upper limiting device

5) Lower limiting device optional

6) Aircraft anti-rotation wire rope

7) Different switches with or without emergency brake

8) Fixed or movable

Specifications
Capacity
100kg (single line)
200kg (double line)
Lifting speed
10m/min (single line)
5m/min (double line)
Voltage
AC 220/230V,
1-phase, 50/60Hz
Lifting height
12m (single line)
6m (double line)
Input power
510W
Gross weight
21kg
Packing size
38*32*25cm
Qty/CTN
2pcs
Detailed Images

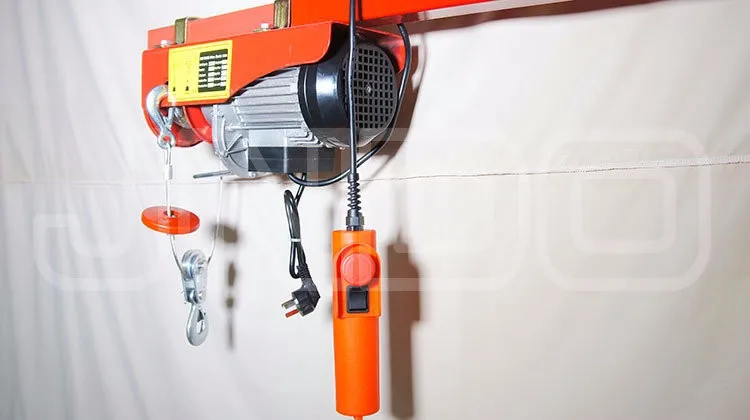

Fixed hoist double line pulling


With the heavy duty forged steel hook and pulley block, the lifting force can be doubled.

The emergence brake cuts the power down immediately to get the user and goods out of danger.

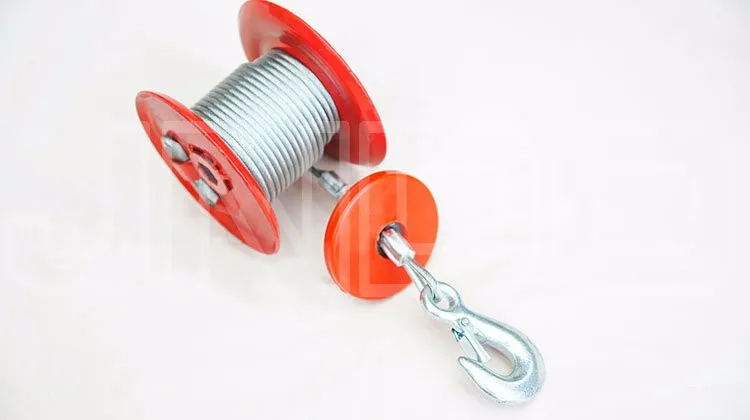

Anti-rotation wire rope


The aircraft anti-rotation wire rope is stronger than normal wire ropes and can prevent the goods from rotation. In that case the lifting process becomes safer.

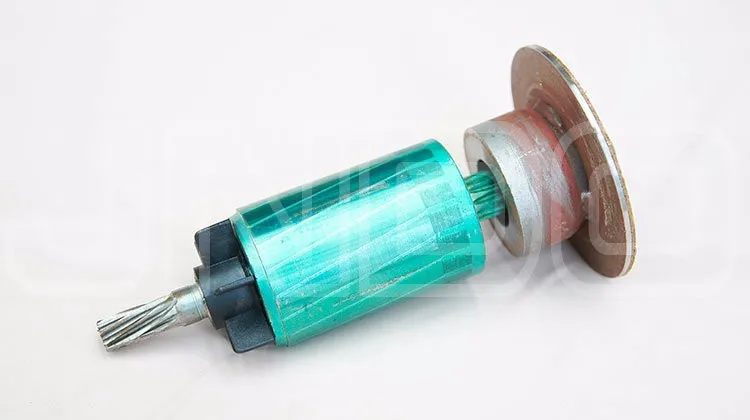

Motor rotor and magnetic braking device

Our motor rotor is designed with an extra fan. This allows for excellent heat dissipation and an extended lifespan of the motor.

Our magnetic braking device has proven to continuously work under full load for 72 hours. It can prevent goods from falling off.

Copper coil


The copper coil of the motor is of superior quality and good conductivity. It is covered by insulation materials.Thermal protector can be installed to prevent the motor from overheat.

Helical gears


We have designed the hoist with high-precision helical gears to greatly reduce noise.

Made of high-tensile forged steel. Each tooth is quenched to gain high hardness and wear resistance.

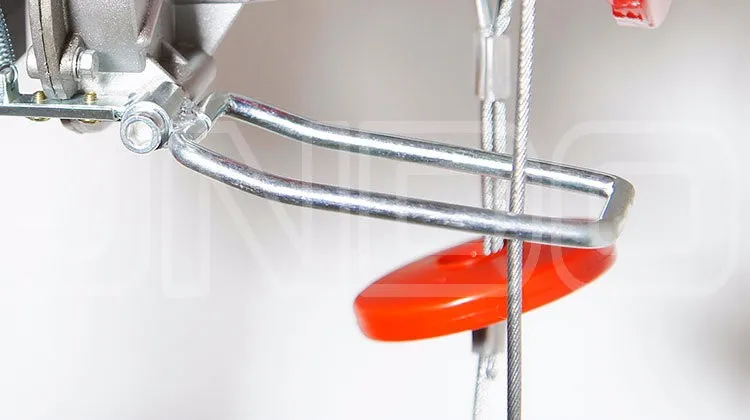

Upper limiting device


When the hoist keeps lifting, the upper limiting device can protect the hoist from damage.

The lower limiting device is optional.

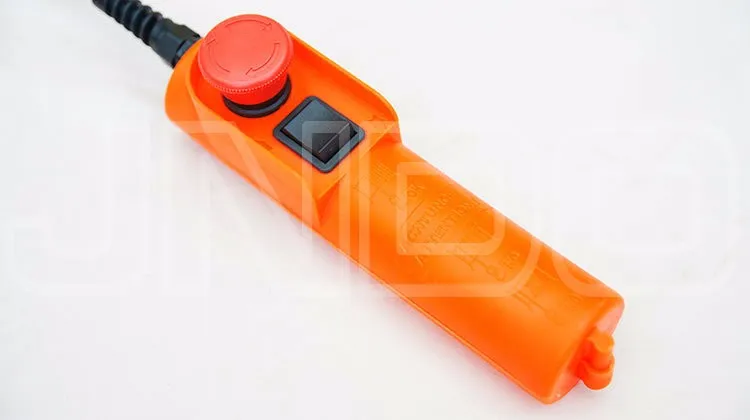

Switch handle


Comfortable switch handle with emergence brake button, saving lives and goods.

Different switches can be chosen at different prices.

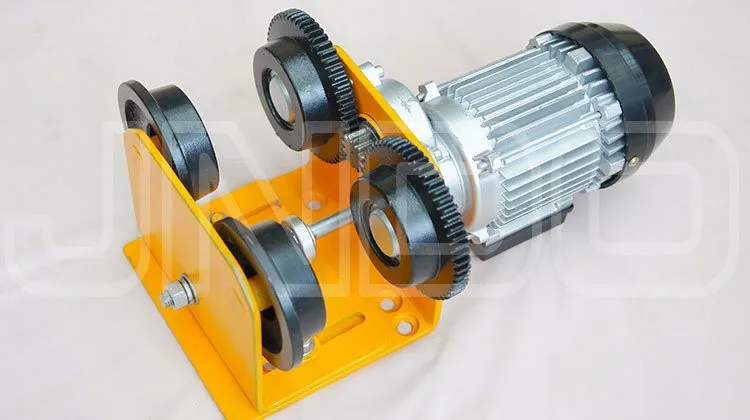

Electric trolley


Powered by AC 100V/120V or 220V/230V electric source, simple to install and control.

The width of the bull-headed rail can be adjusted arbitrarily.

High-quality steel spur gears to ensure the electric trolley runs smoothly.

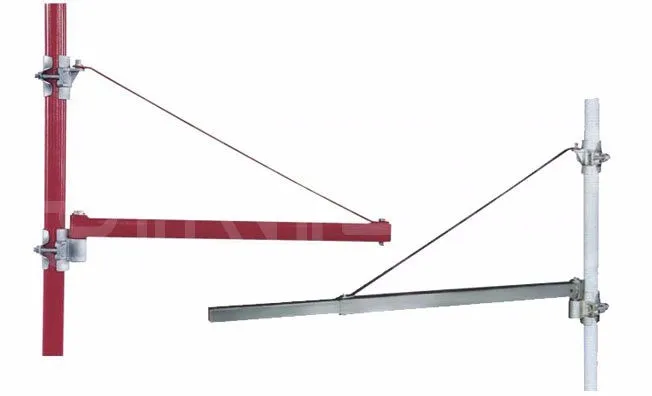

Hoist frame


The frame is in small volume, but can bear heavy load.

Easy installation.

180 degrees rotation with premium casting steel clamp, stable and durable.

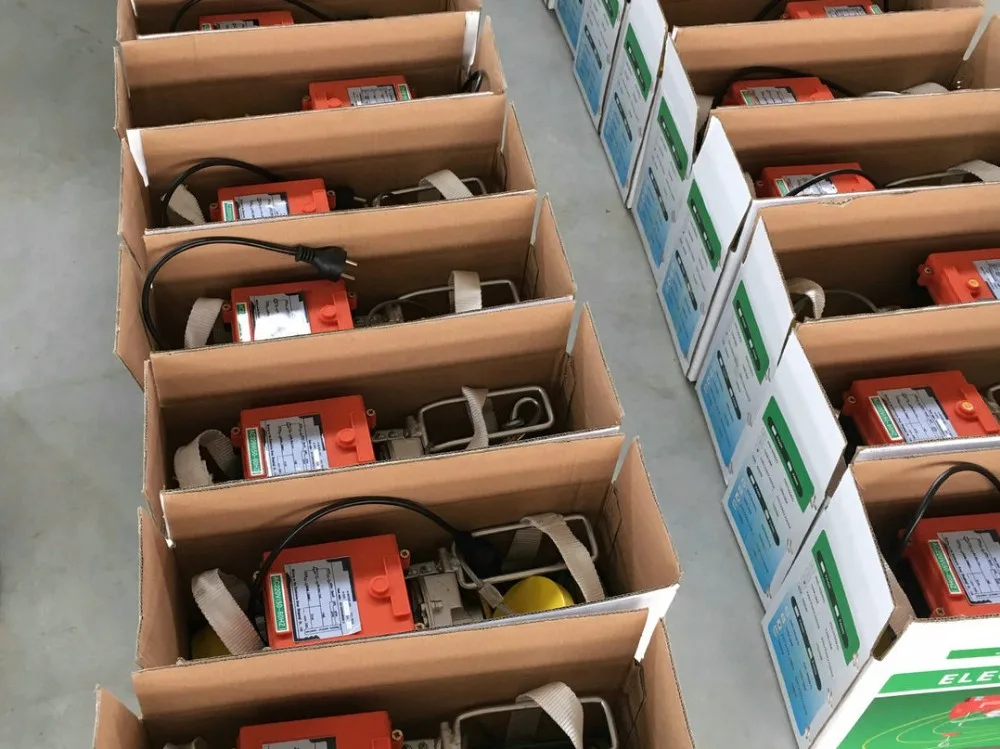

Packing & Delivery
Packaging
Size
38cm (L) * 25cm (W) * 32cm (D)
Weight
N.W/G.W   21kg/22kg



Packaging Details
2 pieces in thick carton.

Transferred on pallets.

Shipping in 30 days after receiving the remittance.

Tracking the goods twice every week.
