Warehouse Workshop Electric Utility Crane Hoist With Winch

FOB Reference Price:Get Latest Price
  • 20 - 49 Pieces
    US $180.00
  • 50 - 99 Pieces
    US $170.00
  • 100 - 199 Pieces
    US $165.00
  • >=200 Pieces
    US $160.00
Report Suspicious Activity
Overview
Quick Details
Feature:
Truck Crane, Truck Crane
Condition:
New
Application:
Construction
Rated Loading Capacity:
500KG
Rated Lifting Moment:
1.2TON.M
Max. Lifting Load:
800kg
Max. Lifting Height:
1940mm
Span:
360
Place of Origin:
Hebei, China (Mainland)
Brand Name:
JNDO
Model Number:
JN-HP1000
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Vehicle mounted crane
Power:
12v 24v electric winch
Crane type:
Small Mobile Mini Crane
Steel tube:
Seamless pipe
Hook Capacity:
1000kg
Electric Winch:
3000LBS
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Warehouse Workshop Electric Utility Crane Hoist With Winch Timber box or carton box 1piece/box or as you like.
Port
Tianjin port
Lead Time :
Shipped in 30 days after payment
Product Description
       Warehouse Workshop Electric Utility Crane Hoist
 With Winch

HP1000 Warehouse Workshop Electric Utility Crane Hoist With Winch is one of our professional products, with 12 volt DC as the power. It is widely used in pick-up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structually compact , small sized, light weighted, and minimal space required, HP1000 is a good helper for lifting goods equal to or less than 1100lbs in weight.

HP1000 Warehouse Workshop Electric Utility Crane Hoist With Winch consists of five major parts: column, supporting rack,arm,boom and winch as well as other accessories. 6010&6011 ball bearings serves as the suppoting point for the crane. The user operates the push bar making the boom rotate 360° to finish the job of loading and unloading. Goods can be lifted and lowered with the winch .



1.Compact design ,folds away when not in use.

 2.Easily installed,on site or by a vehicle body builder.

3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.

        We are also electric winch manufacturer ,we can assure the quality of

                                      electric winch and the steel structure!!!



Product Parameter



MODEL:

JN-HP1000

Single line Lifting Capacity(maximum)

500kg

Double-line Lifting Capacity(maximum)

800kg

Lifting Height Max.Std.(base to hook)

1940mm

Reach Max.(from center of rotation)

1490mm

Rotation (continuous) with Brake

360° Manual

Lifting Cable

4.8mm x 4.5m –1pc(for single-line lifting)
4.8mm x 5.5m—1pc(for double-line lifting)

Line speed with No Load

3.6m/min single line

Power Requirements

12V DC 125 amps

Switch Cable

4.2m

Mounting Base

250x250x18mms

Mounting Bolt Hole Pattern

170x170mms

Finish

Powder Coated

Gross Weight of Crane  (LBS)

69KGS

Color available

As you like





Parts

 electric pickup crane 01.jpg

 electric pickup crane 02.jpg

Canton Fair





Company Information

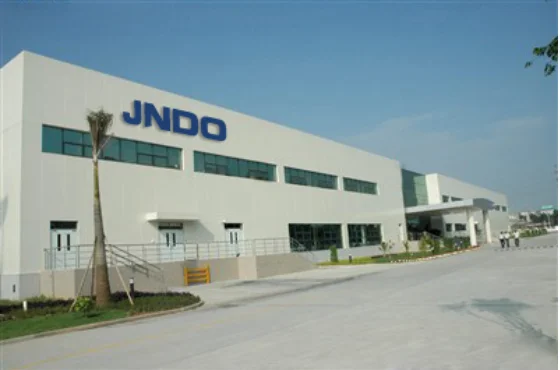

 our factory company.png

 Established in 2006,Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of winch ,electric  winch, vehicle crane. We welcome all the guests to visit our factory.
