Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: JNDO
  • Model Number: JNDO
  • Power Source: Electric
  • Application: ATV/UTV
  • Capacity: 6000lbs
  • Motor: 4.8hp/3.1kw 12V, Series Wound motor,Usd2 more for 24V
  • Certification: CE
  • Gear train: 3 Stage Planetary
  • Gear reduction ratio: 271:1
  • Cable: D3/16''x42.6''(d4.76mmx13m)
  • Drum size: D7.2mmx15m
  • Gross weight: 62.0lbs(28.0kg)
  • Color: Customized
  • Sling Type:: Wire/Nylon Rope
  • Remote Control: Included

Packaging & Delivery

Packaging Details Generally we use carton packaging and we can also be customized according to requirements of the clients.
Delivery Time Shipped in 3 days after payment
Product Description

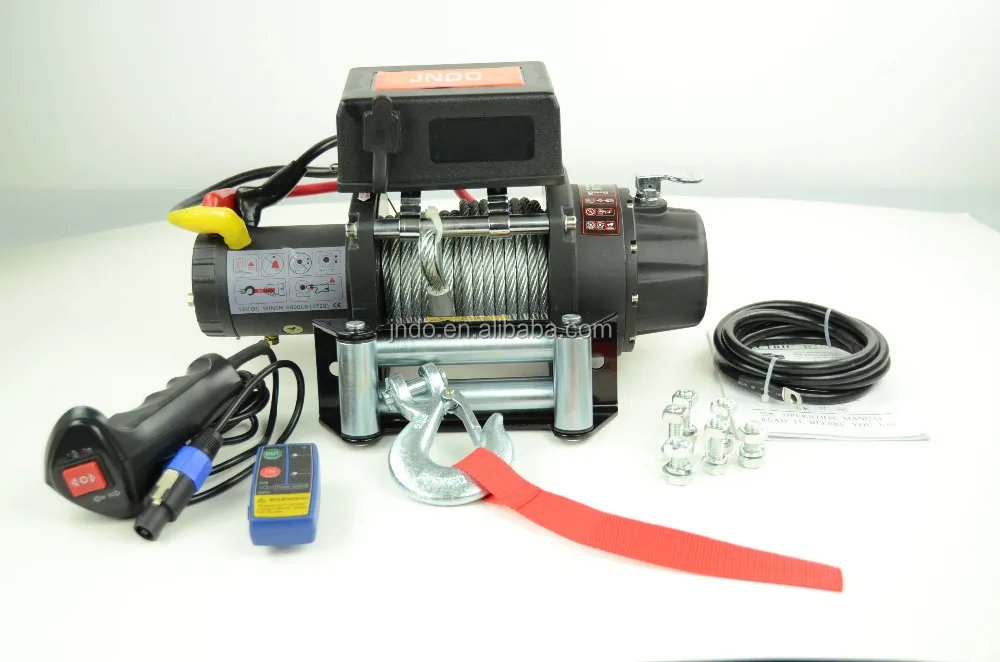

2272kg/6000lbs Electric 12V Winch Kit With Mount Plate


We built the JNDO series to appeal to the 4WD enthusiast who is passionate about quality but wants value for money. The JNDO series ticks all those boxes with standard features not found on comparable winches.

Each winch in the JNDO series features a three stage planetary gearbox with sintered steel bushings which have been pressed and stamped (no pop rivets) into the gear carrier. A sliding ring gear clutch provides maximum strength and efficiency in forward and reverse winching operations with ease of free spool functionality. Each gear box is assembled and lubricated using synthetic grease and conforms to our strict assembly guidelines. Providing strength and enduring the pulling forces exerted is a hardened seamless steel drum assembly. Delivering maximum safety during a recovery is an automatic load holding in-drum brake system.

Delivering power to the winch is a waterproof solenoid that uses Ag-Cd alloy contacts (Silver cadmium alloy). The technology and quality of these contactors resist arching when switching currents. This prevents the contactors from fusing together creating a closed circuit which can potentially damage your winch or vehicle and possibly serious injury to the operator.

This solenoid is housed in a sleek and stylish control box which has a waterproof plug. The heavy duty hand control comes with a 5 metre power cord with the option to upgrade to a wireless remote control which offers the user complete control and flexibility to stand well clear of the winch during operation.

All these models offer performance and reliability in the toughest of conditions. We are so confident in the quality and design of our JNDO series winches we offer a limited 3 year mechanical component warranty and a 1 year electrical component warranty.

SPECIFICATIONS FOR 12V 6000LBS ELECTRIC WINCH
Rated Line Pull
6000LB(2272kg) single-line

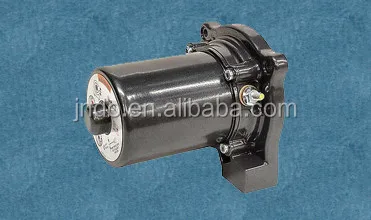

Motor
4.8hp/3.1kw 12V, Series Wound motor Usd2 more for 24V
Gear Train
3-stage planetary
Gear Reduction Ratio
271:1
Clutch
Up and down 90°
Cable
φ7.2mm×24m
Drum Size
φ64mm×134m

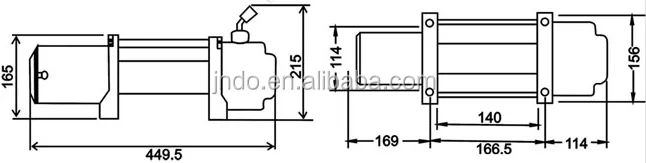

Overall Dimensions
(L×W×H)17.8”×6.3”×6.4”(453×160×162mm)
Gross Weight
62.0 lbs(28.0kg)
Duty Cycle
Intermittently
Fairlead
4-way roller fairlead
Package
1pc/box, 600x380x245mm
Mounting Bolt Pattern
6.45” ×4.5”(164mm×114.3)
Remote Control
included
Note
clutch style, solenoid, brake system can be chosen, different cost
LINE PULL AND ROPE CAPACITY IN LAYER
Layer of cable
1
2
3
4
5
Rated line pull
Lbs
6000
5000
4286
3750
3333
Kgs
2722
2268
1944
1701
1512
Cable of layer
Ft
13.6
29.9
48.9
70.5
78.7
M
4.15
9.10
14.90
21.49
24.00
LINE SPEED & AMP DRAW-FIRST LAYER
Line pull
Lbs
0
2000
3000
4000
5000
6000
Kgs
0
907
1361
1814
2268
2722
Line speed
Fpm
21
18
17
16
12.46
8.36
Mpm
6.40
5.49
5.17
4.88
3.80
2.55
Amp
A
70
106
160
193
223
301

Noice

•    Do not use winch as a hoist, do not use for transportaion of people!
•   Don't operate and spool under full load over one minute continuously!
•   While motor is overtheating, please stop for a while to cool down!
•    Limited warranty!

Products Feature

Automatic braking action

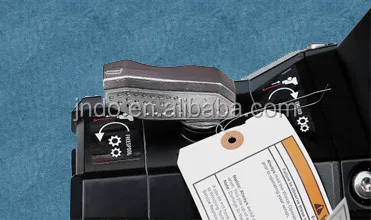

Free spooling clutch for fast line-out,automatic load-holding brake for maximum safety

Solenoid control box supplied

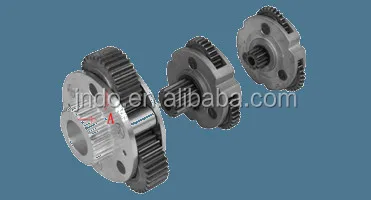

Pure steel,specially designed differential planetary gearing

Wireless remote control works up to 12 ft. away

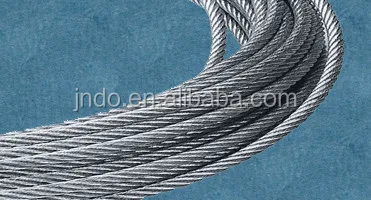

Aircraft grade wire rope,Extremely durable

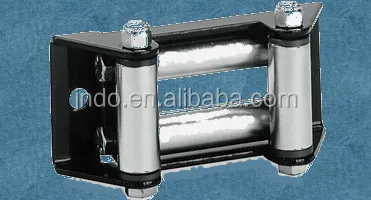

4-way roller fairlead

Galvanized and frosted surface,ultra high strength of waterproof.

Product Show

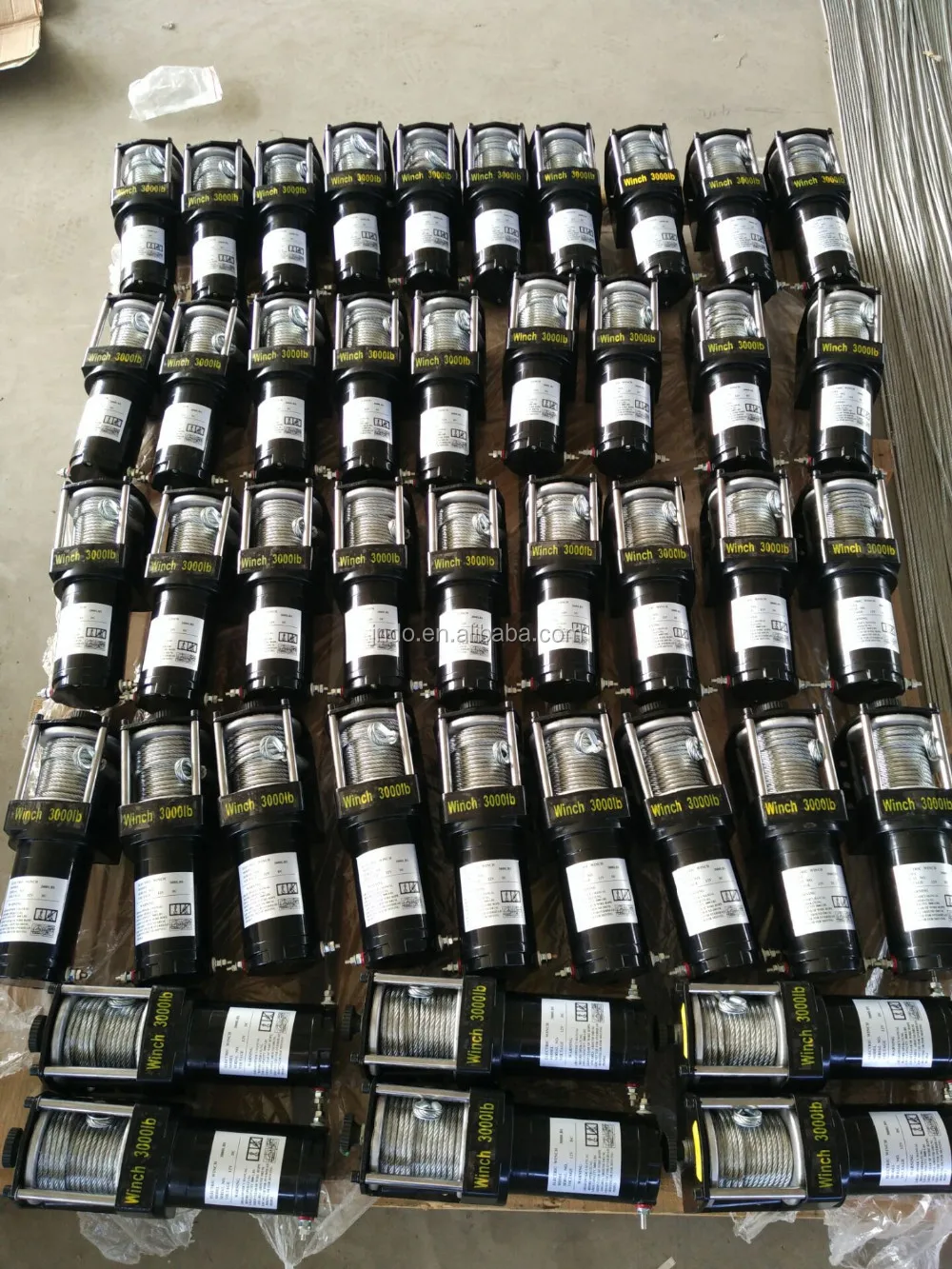

Packing & Delivery
Our service

Certification

  Strong quality control, each and every winch is tested by one specific designated worker for its amps with no load right after the assmeble of winch body to avoid any future problems.

 Of course,you can customize the color or engrave your company LOGO on it so as to make it easier to promote your brand.

 Besides all these,we offer free samples for your better reference.

Payment

Methods of payment we accept:

Paypal

Western Union

MoneyGram

L/C
T/T

Shipping

 All items are dispatched from our warehouse in Hebei, China.
 We work with different courier partners to provide reasonable freight costs and quality service. The type of courier is depending on the size and weight of each item and the delivery location.
 We currently dispatch products to all over the world.

Warranty

 For your peace of mind,this product comes with 1 year warranty.

 We value our customers and wish to make your purchase experience enjoyable.

 If something goes wrong with your product,you should always contact us for assistance.
